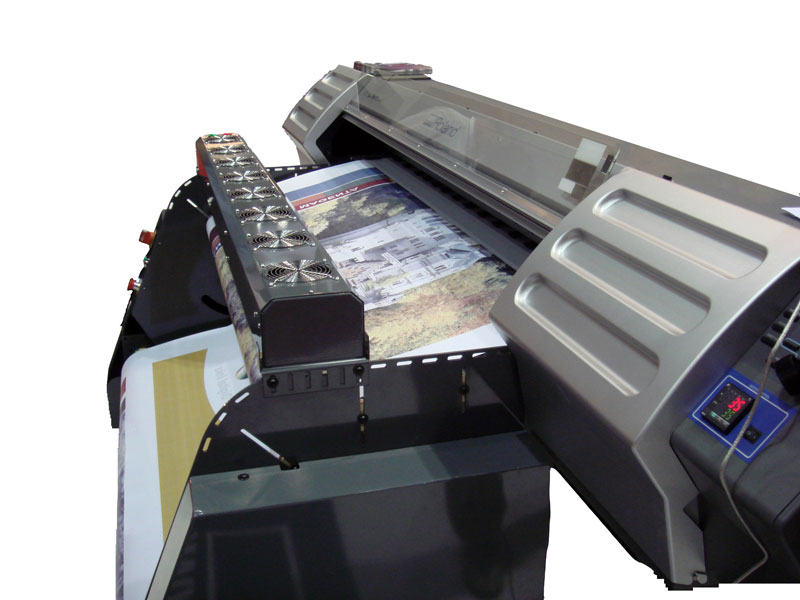

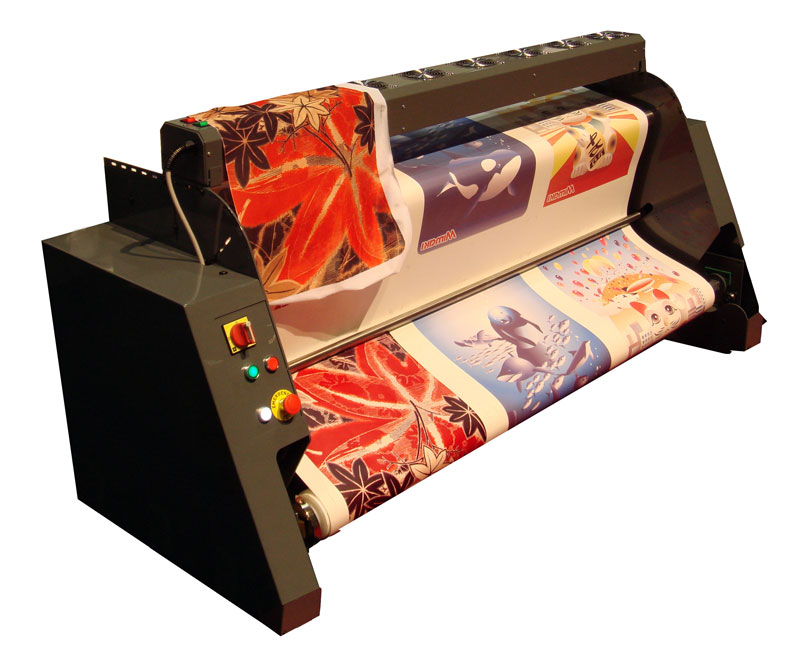

R2R Bulk Substrate Feed System
Holds Over 600lbs of Substrate
R2R Bulk Feeder Features & Benefits
- Only requires 3” of substrate fed from the ink jet machine to begin the web tensioning process.
- Temperature controlled drying unit and 7’ web length before the substrate gets wound within the take-up roller nearly guarantees dry ink with any ink/substrate combination.
- The printer can be fed forward or backward without any limitations from the R2R device.
- The R2R device is completely independent of the printer and does not connect electronically to the printer in any way. It reacts only to the substrate tension from the ink jet device.
- Optional heating units are available. Max 2 units per R2R.
- Heaters may vary depending on the type of printing.
- Heating units are focused away from the print heads.
Technical Specifications
- Printer Compatibility: Mimaki and Roland printers up to 72” wide. Other printers are suitable, ask for details.
- Machine Size Availability: 54”, 64“ and 72” wide models
- Foot Print: (72“ model): 85.25” (2165mm) W x 79.125 (2010mm) D x 33.5“ (850mm) H - not including drying fan assembly. Maximum Material O.D.: 16” (400 mm)
- Material Core Size: 3” core
- Substrate Thickness: Based on inkjet printer limitations
- Power Requirements: 220 VAC Single Phase @ 20 amps
