Direct to Garment Printer
Tricksy DTG-Generation 4
Simple Solutions for Everyday Success!
With so many different direct to garment solutions in the market you may be so confused you want to give up but remember the simplest solutions always work the best. Why buy an over-priced overly complex solution that is just going to make your life harder and make it difficult to earn a profit. Tricksy’s Generation 4 direct to garment system has 4 key elements to make printing directly onto garments simpler than ever.
Key Features

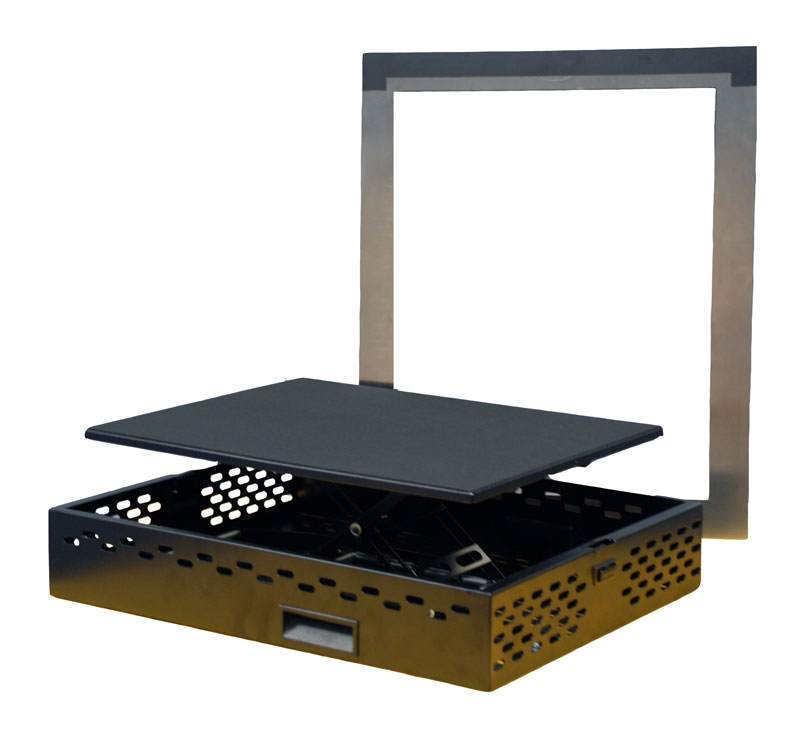

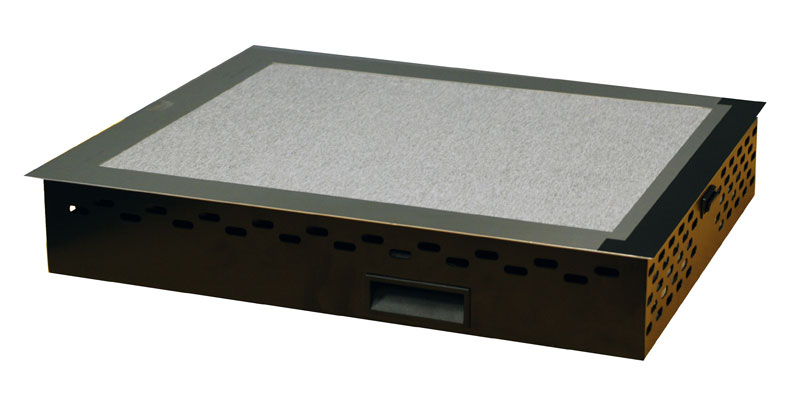

- ZeroFixture© - a closed shirtbox with a simple spring system, which adapts automatically to the individual thickness of each garment.
- ZeroHeight© - functionality makes sure, that the distance to the printhead is kept constant at all times.
- ZeroAlign© - just by pushing a button the garment will be moved exactly and accurately to the start position of the printer every time.
- ZeroWaste© - White Ink Cleaning without wasting CMYK Inks.
Technical Specifications
- Printer: Inkjet textile direct printer
- Maximum print size: 14.17 x 18.3 Inches
- Ink colours: 2 x CMYK or CMYK + 4 x white
- Ink type: Water pigment ink
- Ink supply: 110ml and 220ml cartridges
- Print resolution: 360/720/1440 x 360/720/1440,
up to 2880 max. - Technology: Piezo printheads with variable dots
- Textiles: White or color cotton,
cotton polyester mix, silk, canvas - Software: Cadlink Rip
- Transport: Special transport frame
- Measure: 33 x 35 x 12 Inches
- Weight: 122 lbs
- Environment conditions: 65- 80 F, 40% - 60% relative humidity
- Power supply: 110V to 220V, 50 or 60 Hz, 150W maximum power
- Interface: USB or Ethernet

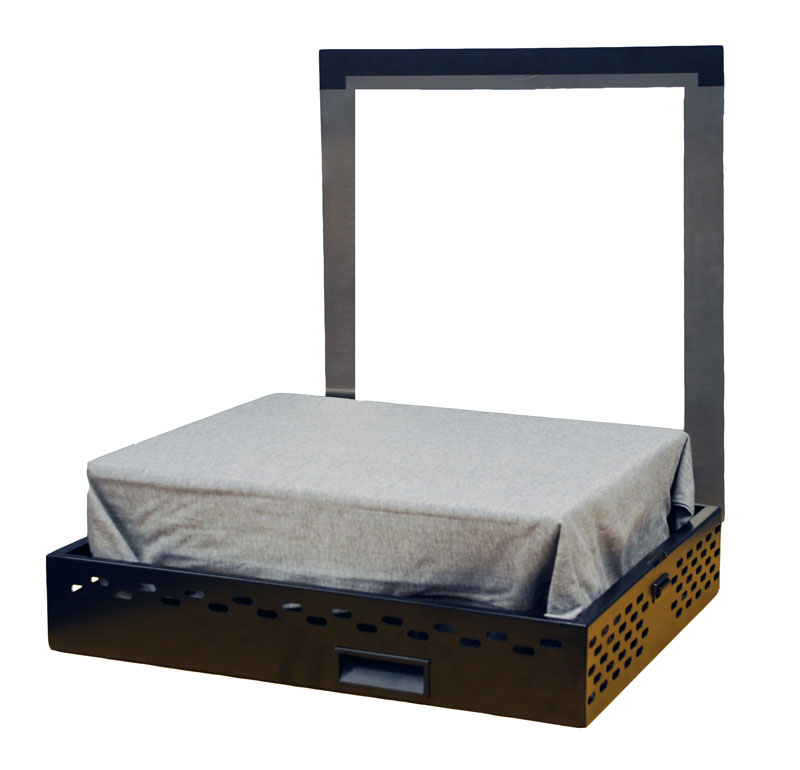

Loading Process Images
Loading Process Videos
